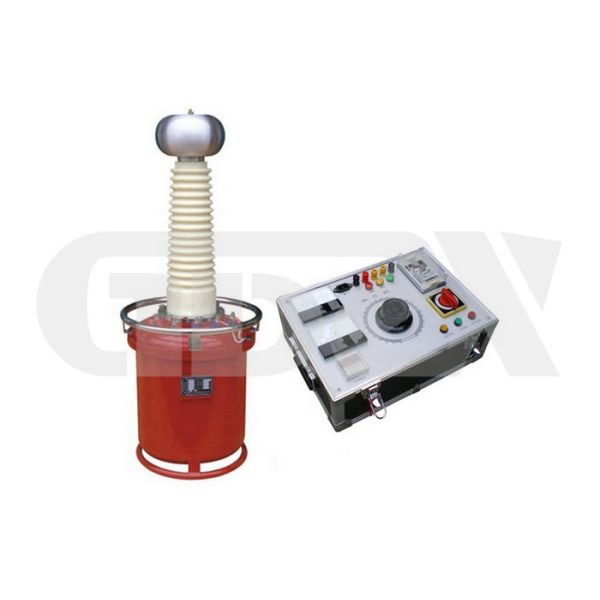

YDQ Series Gas Type 100KV 200KV 300KV HV Testing Transformer /HV hipot tester

  • 1
  • 2
  • 3

Brand Name : GDZX

Model Number : YDQ

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1sets

Payment Terms : L/C, T/T, Western Union, MoneyGram

Packaging Details : carton

Price : USD $2,500.00 - $19,998.00 /SET

Supply Ability : 600SETS/ MONTH

Delivery Time : 15DAYS

Voltage class : 10kV~200kV

Capacity range : 1-50KVA

Warranty : 1 YEAR

Output Voltage : 50kV, 100kV, 150kV, 200kV,300kv

Contact Now

PLEASE NOTE :

YDQ Series Gas Type 100KV 200KV 300KV HV Testing Transformer /HV hipot tester

Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 15 DAYS.

4: SMALL ORDER WELCOME..

5: ONLINE PAYMENT.

6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.

7: AFTER SALES SERVICES 24/7

Product Description:

YDQ Series Gas Type 100KV 200KV 300KV HV Testing Transformer /HV hipot tester

35kV 50kV Gas Testing Transformer Pointer Indicating High voltage Hipot Test Equipment

This device incorporates the most advanced SF6 gas application technique to test the insulation performance for all kinds of electric equipment and especially suitable for field work.

Gas inflatted transformer:

  • Portable, small in size, light in weight (40%-65 % lighter than the same level of oil type)
  • Clean, no oil pollution, no maintenance
  • Unaffected by climate, on site testing without standstill
  • The dielectric strength is significantly higher than the oil type, little corona

Model Capacity Low voltage side High voltage side Viarance 6 min Impedance No load Weight Dimension
kVA Voltage Current Voltage Current Temp.up Voltage Current L*W*H
V A kV mA ℃ % % kg mm*mm*mm
YDQ-1.5/50 1.5 200 7.5 50 30 500 50 10 <4 30 200*275*640
YDQ-3/50 3 200 15 50 60 500 50 10 <4 35 240*300*690
YDQ-6/50 6 200 30 50 120 500 50 10 <4 40 250*355*710
YDQ-10/50 10 200 50 50 200 500 50 10 <4 60 260*375*750
YDQ-15/50 15 400 37.5 50 300 500 50 8 <4 70 270*420*800
YDQ-20/50 20 400 50 50 400 500 50 8 <4 85 285*440*820
YDQ-30/50 30 400 75 50 600 500 50 8 <4 100 295*386*840
YDQ-50/50 50 400 125 50 1000 500 50 8 <4 120 320*416*910

Controller:

  • Monitoring high voltage side output & low voltage side current, indicating zero position, operation, Timing
  • Over-current protection, zero-starting protection
  • With new type timing relay, time range is wider
  • Using the latest current relay, more accurate and reliable and safe
  • Reasonable structure, small size and light weight

* The Parameter can be customized

YDQ Series Gas Type 100KV 200KV 300KV HV Testing Transformer /HV hipot tester

YDQ Series Gas Type 100KV 200KV 300KV HV Testing Transformer /HV hipot tester

Packaging & Shipping:

YDQ Series Gas Type 100KV 200KV 300KV HV Testing Transformer /HV hipot tester

Company information:

YDQ Series Gas Type 100KV 200KV 300KV HV Testing Transformer /HV hipot tester
