Insulator Non Soluble Deposit Density Tester With Microcomputer Control

Brand Name : GDZX

Model Number : ZX-HM

Certification : ISO9001

Place of Origin : China

MOQ : 1Set

Price : US $4299.00-$7795.00 /SET

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P, WeChat, Paypal

Supply Ability : 1200sets/year

Delivery Time : 7-20 work days

Packaging Details : Packing wooden case or carton

Product name : Insulator Non-soluble deposit density Tester

Power : Electronic

Warranty : 1 Year

Balance precision : 0.1mg

Maximum weighing : 200g

Temperature range : room temperature +10℃~250℃

Filtration flow : L/Min:60

The maximum degree of vacuum filtration : MPa:0.098

Single head exhaust air filtration : L/min:10

Supply voltage : 220±10%

Ambient temperature : 5-40℃

Relative humidity : 85%

Contact Now

Digital Intelligent Conductivity Insulator Non-soluble Deposit Density Tester
Product introduction

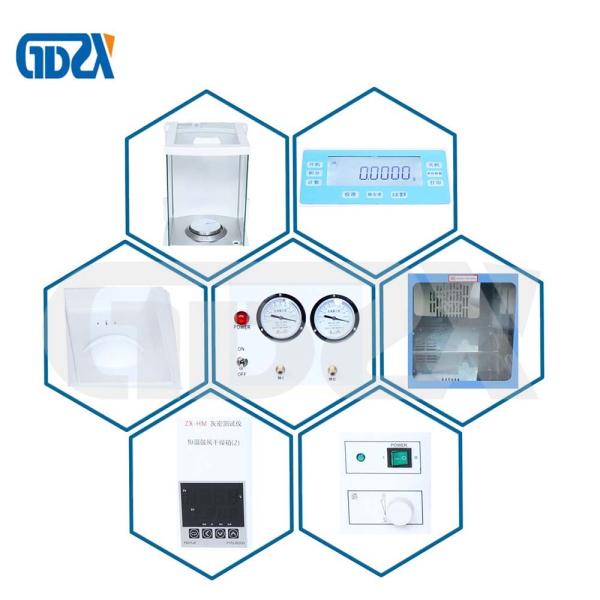

ZX-HM Insulator Non-soluble deposit density Tester is a complete set of measuring equipment, which contains electronic balance, air blast drying device, vacuum filtration device, and accessories. The whole set of device is simple and accurate.

Insulator Non Soluble Deposit Density Tester With Microcomputer Control

Features

1. The vacuum filtering device has the advantages of mature technology, convenient use and high efficiency. It contains a number of taps, can realize a number of filtering process. The use of water circulation device to replace the oil circulation pump make it more convenient with low failure rate
2. The air blast drying device adopts German technology, the air duct is advanced, the fan noise is small, the performance is stable;
3. Microcomputer High precision intelligent control. Once set the temperature, it self judge the heating power and display heating state.
4. Adjustable air inlet for temperature control and gas emissions.
5. digital electronic balance has correction function, self-checking function, and multiple modes


Insulator Non Soluble Deposit Density Tester With Microcomputer Control

Technical Indicators
1. Balance precision: 0.1mg
2. Maximum weighing: 200g
3. Temperature range: room temperature +10℃~250℃
4. Temperature resolution: 1℃
5. Temperature fluctuation degree: ±1℃
6. Temperature uniformity: ±1℃
7. Filtration flow: L/Min:60
8. The maximum degree of vacuum filtration: MPa:0.098
9. Single head exhaust air filtration: L/min:10
10. The number of air filtration head: 2 pcs
11. Supply voltage: 220±10%
12. Ambient temperature: 5-40℃
13. Relative humidity: 85%

Insulator Non Soluble Deposit Density Tester With Microcomputer ControlInsulator Non Soluble Deposit Density Tester With Microcomputer ControlInsulator Non Soluble Deposit Density Tester With Microcomputer Control

Test cases
Insulator Non Soluble Deposit Density Tester With Microcomputer Control

Insulator Non Soluble Deposit Density Tester With Microcomputer ControlInsulator Non Soluble Deposit Density Tester With Microcomputer ControlInsulator Non Soluble Deposit Density Tester With Microcomputer Control
Insulator Non Soluble Deposit Density Tester With Microcomputer Control
Insulator Non Soluble Deposit Density Tester With Microcomputer ControlInsulator Non Soluble Deposit Density Tester With Microcomputer Control

Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
